產(chǎn)品型號：FRD101A40047-B-CTQ.pdf規(guī)格書下載

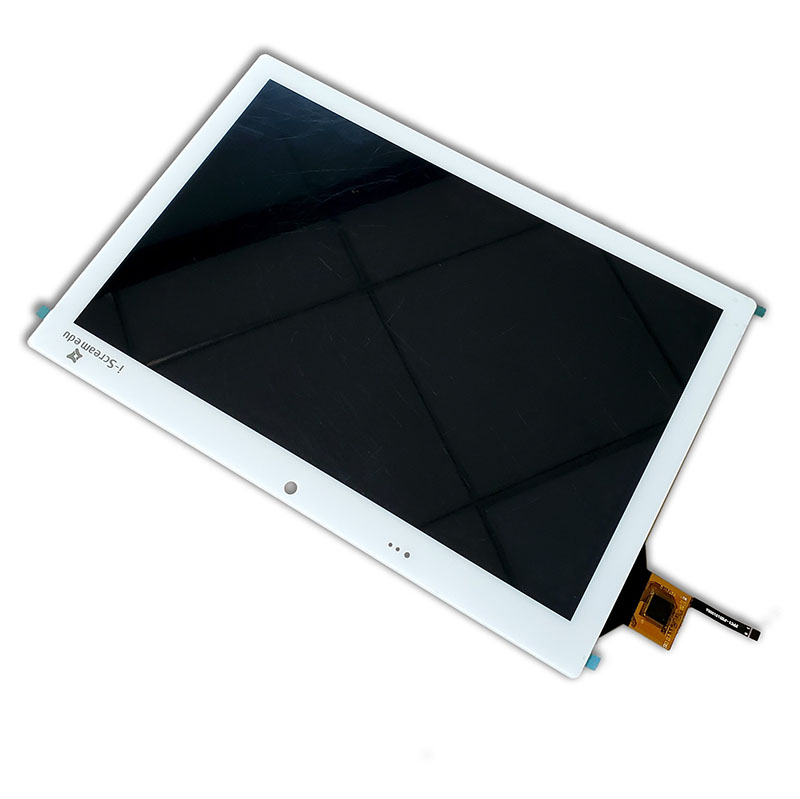

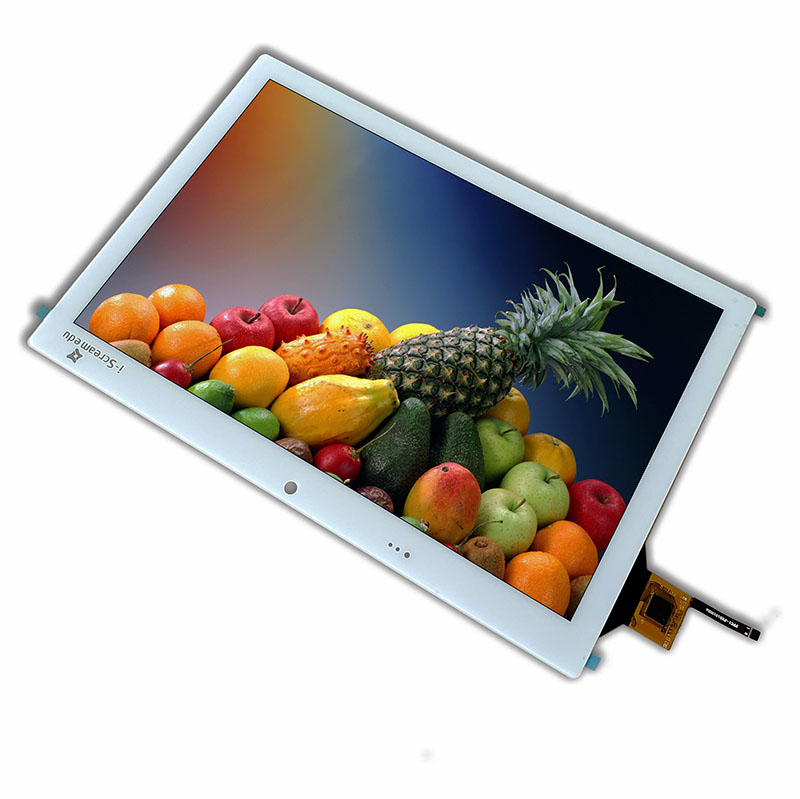

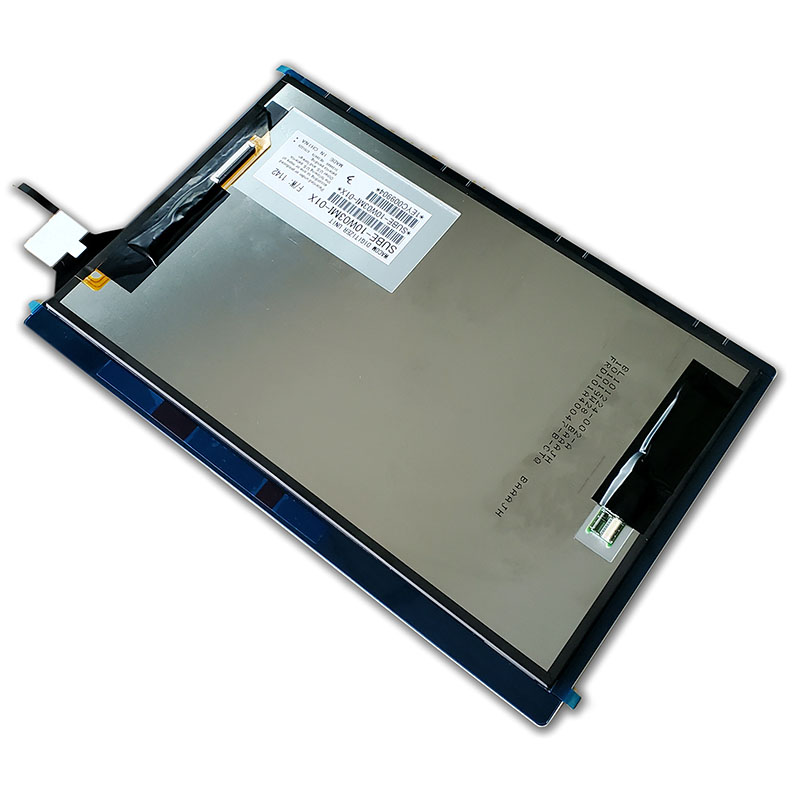

10.1寸TFT液晶電磁屏總成。能夠?qū)崿F(xiàn)精準觸控和原筆跡書寫的電磁式觸控屏，需要配合電磁筆才能實現(xiàn)觸控。產(chǎn)品型號：FRD101A40047-B-CTQ.pdf
No Item Specification Remark
1 Screen Size 10.1inch
2 Display Mode Normally Black
3 Resolution 1200 × RGB × 1920
4 Active Area 135.36*216.58 mm
5 Outline Dimension 163.7*239.4*3.575 mm
6 Viewing Direction ALL
7 Driver IC HX8279-D01QPD-200-P
8 Interface MIPI
9 Back Light White Led*28
10 Touch Panel With CTP
